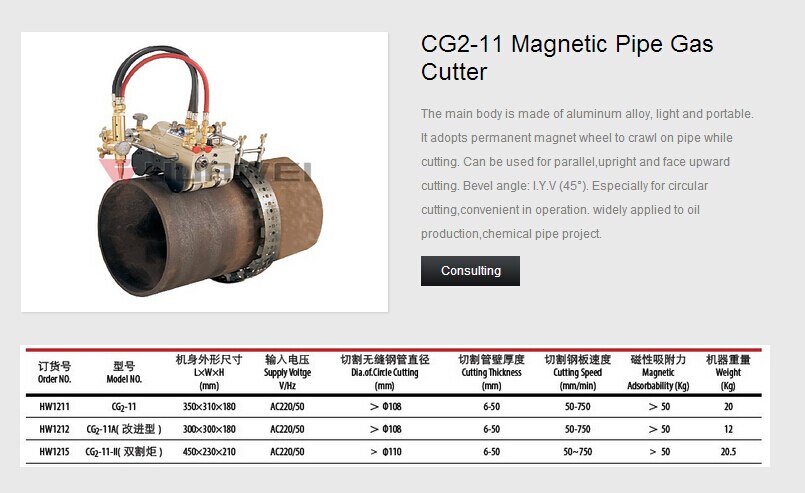

It is convenient to operate the “CG2-11”. It can cut pipes, the diameters of which are above 100mm. It is used in many fields such as ship, mechanism, electric, petroleum industry and so on.This machine is a advanced pipe gas cutter. It has impacted structure, light weight and can cut continuously.
|

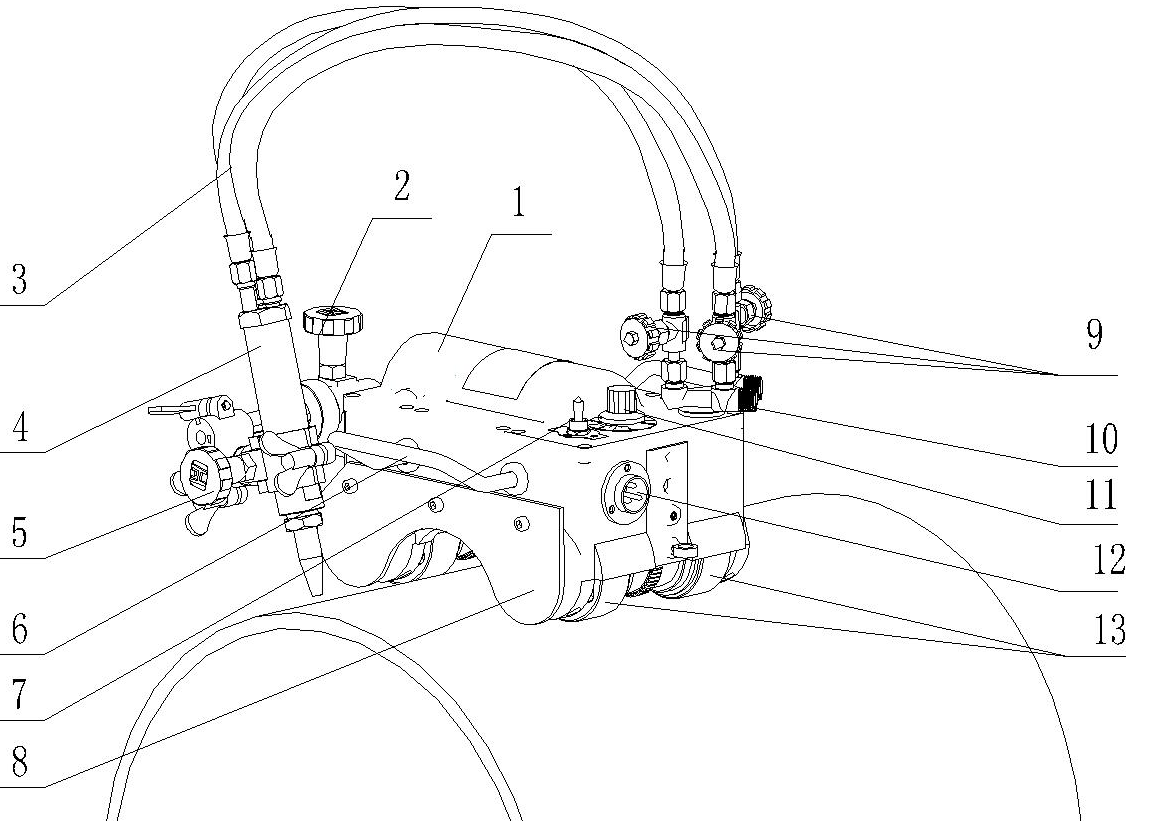

1. Body |
8．Thermal baffle：To prevent heat to diffuse into the inner of machine. |
|
2 .Cross feeding hand wheel To adjust horizontal position of torch. |
|
|
9.Two-port valve：To adjust the flow. |
|
|
3. Hoses：Connect them to gas distributor. There are three hoses: preheating oxygen hose, fuel gas hose and cutting oxygen hose. |
10.Gas distributor：Gases are: preheating oxygen, fuel gas and cutting oxygen. |
|
11 Speed regulating knob：Decrease the speed along “10” toward “0” anti-clockwise. |
|
|
4．Torch |
|
|
5. Adjusting hand wheel of torch |
12．Plug seat |
|
6．Handlebar |
13．Magnetic roller wheel：The two magnetic roller wheels can make the machine walk along pipe wall smoothly. |
|
7．Reversing switch：To change the direction of machine. “STOP” position is in the middle. |
